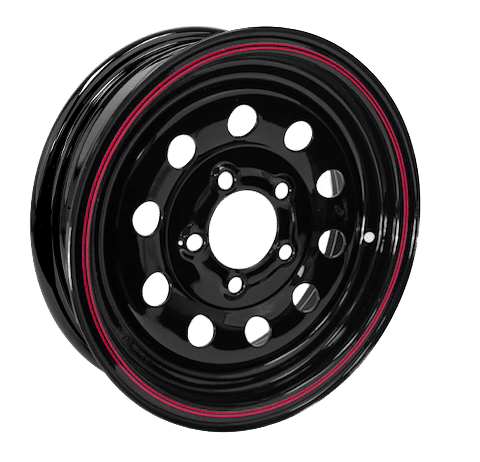

12"-16" MOD
| BLACK W/RED
STRIPES | WHITE
W/STRIPES | WHITE
W/O STRIPES | SILVER | BLACK | RIM SIZE | BOLT
CIRCLE | PILOT | OFFSET | CAPACITY
LBS | GALVANIZED | CAPACITY LBS |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | 20137 | 20140 | - | 20155 | 12x4JA | 4-4 | 2.84 | 0 | 1250 | 20139 | 1250 |
| - | 20142 | 20151 | 20147 | 20153 | 12x4JA | 5-4.5 | 3.19 | 0 | 1250 | 20144 | 1250 |
| - | 20149 | - | 20165 | 20168 | 12x4JA | 5-4.5 | 3.19 | .50 out | 1520 | 20167HD | 1520 |
| - | 20236 | 20250 | - | 20242 | 13x4.5JJ | 4-4 | 2.65 | 0 | 1660 | ||
| 20245RS | 20252 | 20253 | 20244 | 20245 | 13x4.5JJ | 5-4.5 | 3.19 | 0 | 1725 | 20254 | 1660 |
| 20315RS | 20362 | 20365 | 20363 | 20315 | 14x5.5JJ | 5-4.5 | 3.19 | 0 | 2200 | 20364 | 1870 |
| 20440RS | 20442 | 20443 | 20436 | 20440 | 15x5JJ | 5-4.5 | 3.19 | 0 | 2200 | ||
| - | 20446 | 20439 | 20427 | 20438 | 15x5JJ | 5-5 | 3.19 | 0 | 2200 | ||
| - | 20543 | 20551 | 20537 | 20545 | 15x6JJ | 5-4.5 | 3.19 | 0 | 2200 | 20544 | 2150 |
| 20560RS | 20553 | 20552 | 20539 | 20560 | 15x6JJ | 6-5.5 | 4.27 | 0 | 2860 | 20554 | 2830 |
| - | 20748 | 20742 | 20746 | 20757 | 16x6K | 6-5.5 | 4.27 | 0 | 3050 | 20744 | 3050 |
| - | 20795 | 20759 | 20808 | - | 16x6K | 8-6.5 | 4.90 | .50 IN | 3750 | ||
| 20761BRS | 20761 | 20762 | 20760 | 20761B | 16x6K | 8-6.5 | 4.90 | 0 | 3750 | ||
| - | 20785 | 20789 | 20794 | 20799 | 16x6K | 8-6.5 | 4.90 | 0 | 4400 | ||
| - | - | 20793 | - | - | 16x6K | 8-6.5 | 4.90 | .50 IN | 4400 |
Inset = Positive [+] moves tires towards the centerline of the trailer.
